Glass Adhesive

Panacol-USA’ expertise in developing glass bonding adhesives is second to none. Since its inception over 15 years ago, Panacol-USA continues to develop new adhesive products to address the evolving challenges of glass assembly. High strength bonding of glass to glass, glass to metal, or glass to other dissimilar substrates is made possible with a family of UV and UV/Visible light curable adhesives. This includes flat glass, float glass, tempered glass, and a myriad of other glass types.

The majority of Panacol-USA’s glass bonding adhesives will cure under very low intensity light, allowing the use of more economically priced equipment. These adhesives are ideal for use with monochromatic LED light sources. Curing in fractions of a second, Panacol-USA’s glass adhesives reduce assembly time and lower total process costs.

Panacol-USA’s glass adhesives are single component and solvent free. The cured adhesives are optically clear, and are resistant to thermal cycling and humidity. Panacol-USA’s adhesives have been used to bond optical assemblies, make glass furniture and display cases, enhance the appearance of doors and windows, and assemble glass art, which includes outdoor displays that have successfully withstood years of environmental stress.

A unique product has been developed to facilitate the creation of decorative glass used in windows, doors, mirrors, lighting, goblets, vases, and other household accessories. Distinctive patterns can be chipped into glass using Panacol-USA exclusive Chip-In-Place polymer. The advantage of this polymer over other methods and materials is that Chip-In-Place is low odor, fast curing with UV light, and produces finished patterns in hours, not days! This eliminates long waiting periods, space-consuming racking, and the high cost of inventory. The product is also available in gel viscosity which allows curved and vertical surfaces to be etched.

Please open one of the links below to view our selection of light curable glass bonding adhesives.

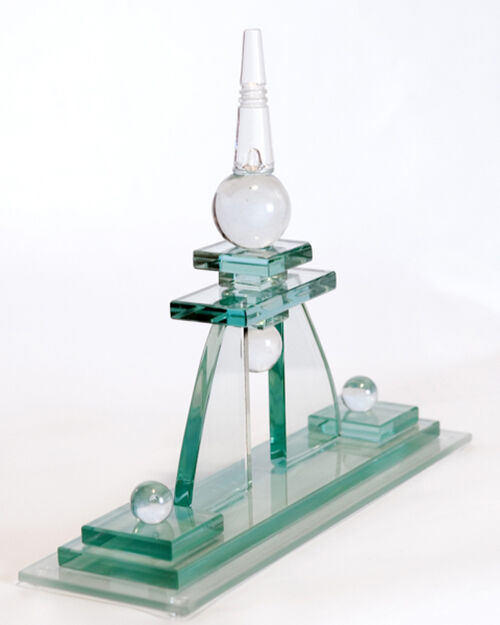

Uv or light curing adhesive is used for bonding decorative glass structures or even glass syringes

Glass Bonder: Application Viscosity [mPas] Base Curing* Properties
Vitralit® 6127 glass bonding 20-100 acrylate UV High purity
specially formulated for bonding glass
Vitralit® 6128 attaching components on PCBs
encapsulation of electronic components
SMD assembly
lens bonding cement
glass bonding
potting material
800-1,200 acrylate UV
thermal
Contains chemical activator
very high adhesion to stone
glass
metals and thermoplastics
high temperature resistance
Vitralit® 6133 lens bonding cement
glass bonding
600-1,000 acrylate UV
VIS
High strength and impact resistance
very high adhesion to glass
metals
and anodized aluminium
transparent
Vitralit® 6134 lens bonding cement
glass bonding
700-1,000 acrylate UV
VIS
Very high adhesion to stainless steel
stone
granite
high purity
suitable for bonding optical components
transparent
Vitralit® 7561 glass bonding 500-850 acrylate UV
VIS
Elastic
low water absorption
perfect solution for bonding large surfaces
high resistance to moisture
Vitralit® 7562 glass bonding
medical technology
500-800 acrylate UV
VIS
Optically clear
flexible
elastic
high resistance to moisture
Vitralit® UV 2725 glass bonding 200-400 acrylate UV
VIS
High peel strength
flexible
optically clear
for bonding large surfaces
Vitralit® 6300 glass bonding
plastic bonding
3,000-5,000 acrylate UV
VIS
thermal
Jetable
non-yellowing
very high adhesion to glass and metals
dual cure
Vitralit® 6008 VLV glass bonding 40-90 acrylate UV
VIS
Capillary flow
transparent
Vitralit® 6125 attaching components on PCBs
potting material
encapsulation of electronic components
SMD assembly
lens bonding cement
glass bonding
automotive, aerospace
4,000-6,000 acrylate UV
thermal
Contains chemical activator
excellent adhesion to stone
glass
metals and thermoplastics
high temperature resistance
medium viscosity
Vitralit® VBB-N display encapsulation
plastic film lamination
glass bonding
50-150 acrylate UV
VIS
Transparent
elastic
high peel strength
Vitralit® 6350 Gel glass bonding 30,000-65,000 acrylate UV
VIS
excellent peel and tensile shear strength
Vitralit® 8H13-201 glass bonding 700-1,400 acrylate UV
thermal
excellent peel and tensile shear strength
Vitralit® UV 2769 glass bonding 60-100 acrylate UV
VIS
low water absorption
Vitralit® 6128 Gel Glass bonding 50,000-150,000 acrylate UV
thermal
excellent adhesion to many thermoplastics
very good temperature resistance

*UV = 320 - 390 nm          VIS = 405 nm

To download the technical datasheets (TDS) please click on the adhesive name.

Read more:

Bevel Bonding

Glass bevels used in decorative glass assembly are easily joined using our Vitralit® adhesives.

more information
