Glass Bevel Bonding

Glass bevels are used in decorative glass assembly to create a prismatic effect in windows, doors, and lighting. The bevel itself is thick glass, with edges that have been ground and polished to form obtuse angles to refract light. The bevels are typically attached to flat glass or leaded glass panels with adhesive. As the assembled glass can be used in exterior windows, doors, etc., the adhesive must be able to survive harsh environments for an incredibly long duration.

Panacol-USA has developed a family of bevel bonding adhesives just for this purpose. These adhesives have been in use for many years, and have accumulated real-time performance data which surpasses customer expectations. They survive environmental stresses that include moisture, humidity, and thermal cycling, and remain optically clear to provide maximum transmission of light.

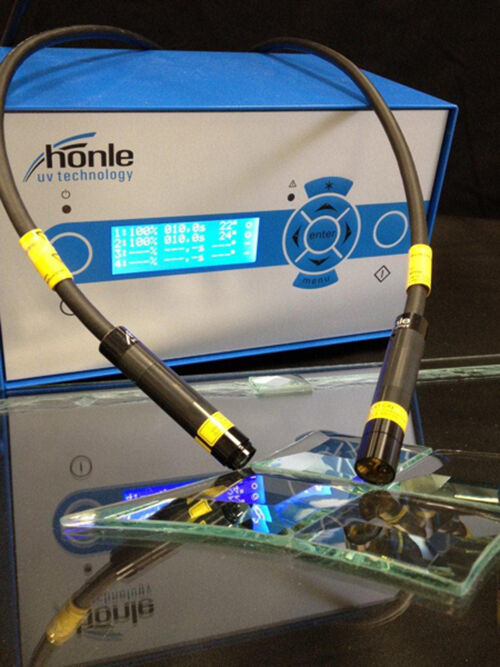

Panacol-USA bevel bonders cure (harden) with low intensity UV/Visible light, making bevel assembly an incredibly fast process. LEDcure adhesives are included in Panacol-USA’s product selection for bevel bonding. LEDcure products from Panacol-USA fully cure in fractions of a second under low intensity UV/visible or Visible light. They are ideal for use with LED light curing equipment.

The adhesives are solvent-free, and single component for easy dispensing. The bevel bonding adhesive family offers several viscosity options to better accommodate a variety of bevel configurations and assembly processes.

Vitralit® adhesives from Panacol-USA are the perfect choice to bond glass bevels and prisms

View the bevel bonding adhesive selections listed below for a possible candidate for your application. Please contact Panacol-USA to confirm your product selection and to secure additional application assistance, including samples and process recommendations. In the event that these standard products do not satisfactorily address your performance requirements, Panacol-USA will investigate other solutions that include development of adhesive specifically tailored to the complexity of your application.

Adhesives: Application Viscosity [mPas] Base Curing* Properties
Vitralit® VBB-N display encapsulation
plastic film lamination
glass bonding
50-150 acrylate UV
high peel strength
Vitralit® VBB-2N LV bonding rubber and latex
display encapsulation
plastic film lamination
glass bonding
10-100 acrylate UV
perfect solution for bonding large surfaces
high peel strength
Vitralit® 6108 glass bonding
medical technology
potting material
600-900 acrylate UV
excellent flow properties
certified to USP Class VI and ISO 10933-5 standards
Vitralit® 6127 glass bonding 20-100 acrylate UV High purity
specially formulated for bonding glass
Vitralit® VBB-NC Adhesive for laminating processes
Glass bevel bonding
Vitralit® VBB 1 encapsulation of electronic components
glass bonding
display encapsulation
plastic film lamination
plastic bonding
potting material
1,000-1,500 acrylate UV
high peel strength
optically clear
very flexible
suitable for potting
Vitralit® 30031 Glass bevel bonding
Vitralit® 30085 Glass bevel bonding
Vitralit® 30320 Glass bevel bonding
Vitralit® 3441 Glass bevel bonding
Vitralit® 38429 Glass bevel bonding
Vitralit® 3881 Glass bevel bonding
Vitralit® 3887 Glass bevel bonding

*UV = 320 - 390 nm          VIS = 405 nm

To download the technical datasheets (TDS) please click on the adhesive name.
