Glass Adhesive
Panacol-USA’s expertise in developing glass adhesives is second to none. Since its inception over 15 years ago, Panacol-USA continues to develop new adhesive products to address the evolving challenges of glass assembly. High strength bonding of glass to glass, glass to metal, or glass to other dissimilar substrates is made possible with a family of UV and visible light curable adhesives. This includes adhesives for flat glass, float glass, tempered glass, and a myriad of other glass types.
The majority of Panacol-USA’s glass adhesives will cure under very low intensity light, allowing the use of more economically priced equipment. These adhesives for glass bonding are ideal for use with monochromatic LED light sources. Curing in fractions of a second, our Vitralit® glass adhesives reduce assembly time and lower total process costs.

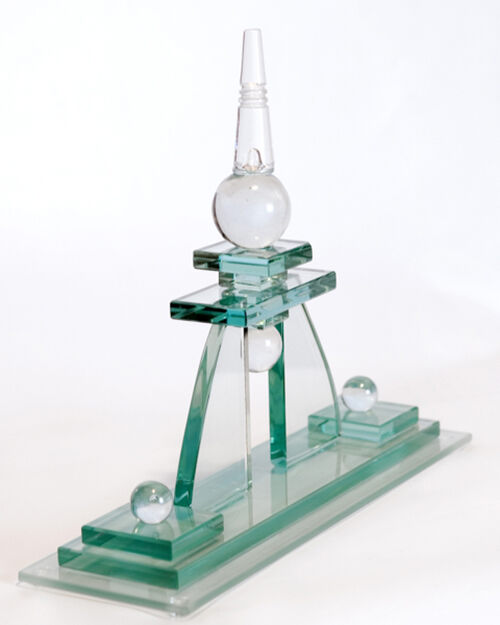

Our Vitralit® glass adhesives are single component and solvent free. The cured adhesives are optically clear, and are resistant to thermal cycling and humidity. Panacol-USA’s glass adhesives have been used to bond optical assemblies, make glass furniture and display cases, enhance the appearance of doors and windows, and assemble glass art, which includes outdoor displays that have successfully withstood years of environmental stress.
A unique product has been developed to facilitate the creation of decorative glass used in windows, doors, mirrors, lighting, goblets, vases, and other household accessories. Distinctive patterns can be chipped into glass using Panacol-USA exclusive Chip-In-Place polymer. The advantage of this polymer over other methods and materials is that Chip-In-Place is low odor, fast curing with UV light, and produces finished patterns in hours, not days! This eliminates long waiting periods, space-consuming racking, and the high cost of inventory. The product is also available in gel viscosity which allows curved and vertical surfaces to be etched.

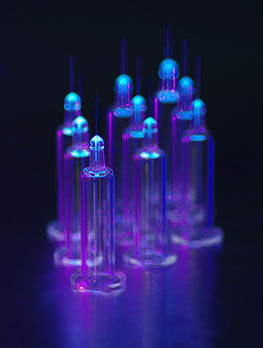

Uv or light curing glass adhesive is used for bonding decorative glass structures or even glass syringes and needles
Below is a selection of light curable glass adhesives and glass bonding solutions. Please open one of the links below to view the technical data sheet.
| Glass Adhesive | Application | Viscosity [mPas] | Base | Curing* | Properties |
|---|---|---|---|---|---|
| Vitralit® 6127 | glass bonding | 20-100 (LVT 25°C, Sp. 2/60 rpm) | acrylate |
UV secondary heat cure |
high purity specially formulated for bonding glass |
| Vitralit® 6128 |
attaching components on PCBs encapsulation of electronic components SMD assembly lens bonding cement glass bonding potting material |
800-1,200 | acrylate |
UV secondary heat cure |
very high adhesion to stone, glass, metals and thermoplastics high temperature resistance |
| Vitralit® 6133 |
lens bonding cement glass bonding |
600-1,000 (LVT 25°C, Sp. 3/30 rpm) | acrylate |
UV VIS |
High strength and impact resistance very high adhesion to glass metals and anodized aluminium transparent |
| Vitralit® 6134 |
lens bonding cement glass bonding |
700-1,000 | acrylate |
UV VIS |
Very high adhesion to stainless steel stone granite high purity suitable for bonding optical components transparent |
| Vitralit® 7561 | glass bonding | 500-900 | acrylate |
UV VIS |
Elastic low water absorption perfect solution for bonding large surfaces high resistance to moisture |
| Vitralit® 7562 |
glass bonding medical technology |
500-900 | acrylate |
UV VIS |
Optically clear flexible elastic high resistance to moisture |
| Vitralit® UV 2725 | glass bonding | 200-400 (LVT 25°C, Sp. 2/30 rpm) | acrylate |
UV VIS |
High peel strength flexible optically clear for bonding large surfaces |
| Vitralit® 6300 |
glass bonding plastic bonding |
2,500-4,000 | acrylate |
UV VIS secondary heat cure |
jetable non-yellowing very high adhesion to glass and metals dual cure |
| Vitralit® 6008 VLV | glass bonding | 40-90 | acrylate |
UV VIS |
Capillary flow transparent tack-free surface |
| Vitralit® 6125 |
attaching components on PCBs potting material encapsulation of electronic components SMD assembly lens bonding cement glass bonding automotive, aerospace |
4,000-6,000 (LVT 25°C, Sp. 4/30 rpm) | acrylate |
UV secondary heat cure |
excellent adhesion to stone, glass, metals and thermoplastics medium viscosity |
| Vitralit® VBB-N |
display encapsulation plastic film lamination glass bonding |
50-150 | acrylate |
UV VIS |
Transparent elastic high peel strength |
| Vitralit® 6350 Gel | glass bonding | 30,000-65,000 | acrylate |
UV VIS |
excellent peel and tensile shear strength |
| Vitralit® 8H13-201 | glass bonding | 700-1,400 | acrylate |
UV secondary heat cure |
excellent peel and tensile shear strength |
| Vitralit® UV 2769 | glass bonding | 60-100 | acrylate |
UV VIS |
low water absorption |
| Vitralit® 6128 Gel | Glass bonding | 7,000-20,000 | acrylate |
UV secondary heat cure |
excellent adhesion to many thermoplastics very good temperature resistance |
*UV = 320 - 390 nm VIS = 405 nm
To download the technical datasheets (TDS) please click on the adhesive name.
