UVA Print 100-200 HPV

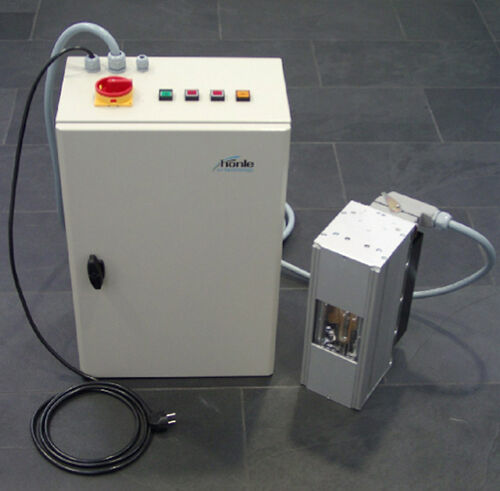

The Honle UVAPRINT 100-200 HPV is a versatile and compact high-intensity ultraviolet radiation device designed for large area curing of adhesives and coatings. It consists of a UV lamp unit and power supply.

The UVAPRINT 100-200 HPV can be used with arc lengths 100 mm, 150 mm and 200 mm. For all lengths, lamps with HOZ, FOZ and GOZ spectra are available. In the UVAPRINT 100-200 HPCV the reflectors are fixed, i.e. it possesses no shutter-function.

The UVAPRINT 100-200 HPV lamp unit is cooled by two ventilator fans integrated in the lamp unit itself. The electronic control system adjusts the quantity of cooling air depending on the respective temperature of the outgoing air. By using the optional advanced cold mirror ACM (UVAPRINT 100-200 HPV ACM), the thermal load on the material subjected to radiation can be significantly reduced. The optional cooling plate (UVAPRINT 100- 200 HPV G) can be used to equip the lamp unit for use with web applications.

The power supply contains the electrical control system with the feed, the main switch, operating elements and the interface for overriding machine control.

The equipment can be operated via the switches on the power supply or externally by a remote control or an overriding control system.

The UVAPRINT 100-200 HPV is used in the following applications:

  • Bonding, coating or encapsulating of electrical assemblies, medical devices and electronic components
  • Drying of UV-reactive paints and varnishes
  • UV-radiation for research and production in the chemical, biological and pharmaceutical industries

Versatile UV large area curing system UVA Print 100-200 HPV from Honle


Brochure UVA Print 100-200 HPV

UV curable adhesives:

UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle

Technical Data for Honle UVAPRINT hpv 100-200

Light-emitting aperture in mm: Selectable between: 100 x 110 | 150 x 110 | 200 x 110
Dimensions in mm (L x W x H): 403 x 135 x 158
Available lamps: Choice from H- G- or F- lamp in lengths of 100, 150 or 200 mm
Power setting: Two power steps: 1 kW or 2 kW
Power output: Up to 200 W/cm
Cooling: Air-cooled
