Bluepoint 4 ecocure

The Bluepoint 4 ecocure is an extremely powerful, full spectrum uv spot curing system. It is ideal for curing UV adhesives and coatings in the shortest possible cycle times. Manually actuated, the Bluepoint 4 ecocure ist the economical version of the Honle bluepoint 4, providing the same high intensity, programmability features, and long lamp life. Its full spectrum of UV/visible light energy overcomes UV blocking substrates and produces dry, tack-free surfaces.

Features include:

  • Extremely powerful spot source with infinitely variable UV intensity between 2.000 and 14.000 mW/cm² UVA
  • Long lamp service life (approx. 3,000 hours) combined with lower intensity reduction over time
  • Easy lamp replacement through a slide-out module at the front panel
  • User-friendly and menu-driven operation
  • Ability to manually program complete exposure sequences
  • Electronic ballast with automatic adjustment to any AC main supply
  • Interchangeable filters for different wavelength spectra
  • All parameter settings can be memorized on 6 storage locations and loaded when needed
  • Software update via internet

Bluepoint 4 ecocure spot curing lamps are suitable for a large range of applications:

  • Bonding or potting of components in the electronic, optical and medical industry
  • Localized curing of protective coatings and encapsulants
  • Fluorescent excitation for material testing and image processing
  • High-intensity UV irradiation for chemical, biological and pharmaceutical purposes

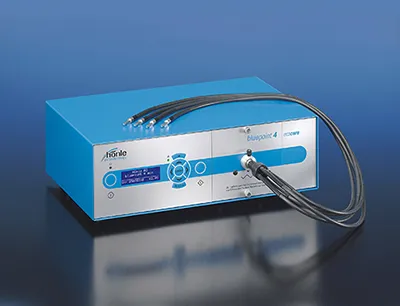

UV curing spot unit with four  light heads: Bluepoint 4 ecocure from Honle


Brochure Bluepoint 4 ecocure

UV curable adhesives:

UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle

 Technical Data for Honle Bluepoint 4 ecocure

UVA intensity*: 2.000 - 14.000 mW/cm²
Typical lamp life: > 3.000 hours
Timer setting range: 0.1 – 999.9 sec
High pressure mercury lamp: 150 W
Mains supply: 90 V - 264 V, 47 Hz - 63 Hz
Input current: max. 2.2 A
Power rating: 200 W
Dimensions (H x W x D): 155 x 450 x 310 mm
Weight: 9.5 kg

* measured with 8mm test light guide and Honle UV meter with UVA light guide sensor
