Acrylic UV Adhesive

UV adhesives based on acrylic resin from Panacol-USA can be used in a very wide range of industrial applications for the purpose of bonding, sealing, masking, and coating of components and assemblies. These single component formulations are solvent-free, and fully cure (harden) in seconds when exposed to ultraviolet (UV) or visible light energy.

Acrylic uv adhesives are comprised of three primary components: photoinitiator, monomer, and oligomer (resin). The photoinitiator triggers the curing process when it is exposed to light energy of the appropriate wavelength. The monomer component in the formulation primarily impacts the degree of adhesion to any given substrate. The oligomer provides most of the post-cure mechanical properties such as hardness, elongation, elasticity, shrinkage, etc. Small percentages of additives may also be incorporated into the formulations to provide unique features such as fluorescence and color. Specially formulated acrylic adhesives from Panacol-USA feature thermal or moisture postcuring, ensuring fully cured adhesives in shadowed areas.

Panacol-USA’s light curable adhesives are based on either acrylate or epoxy resin. Read more about our epoxy-based adhesives.

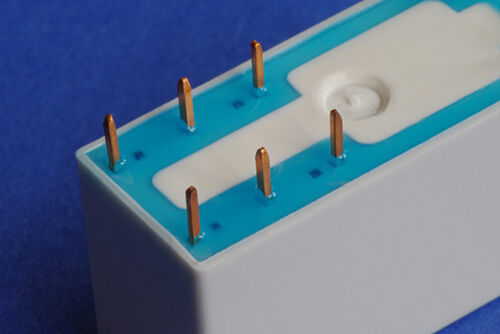

A blue uv adhesive based on acrylate resin from Panacol-USA is used as an encapsulant

UV curing equipment:

UV system solutions with Panacol adhesives and innovative curing systems from Honle

UV Curable Acrylic Adhesives

Creativity and technical expertise drive Panacol-USA R&D chemists to develop truly unique uv adhesive technology. These include:

  • UV adhesives: Multi-purpose adhesives and coating that cure rapidly when exposed to UV light energy (less than 395nm).
  • UV/Visible light curable adhesives: Adhesive that absorb the broad UV and visible light spectrum for faster and deeper curing. Ideally suited for substrates that partially or fully block UV wavelengths.
  • Visible light curable adhesives: Formulated to cure with only visible light (400-420nm). Unique formulations can also be produced with curing ability at 455-465nm wavelengths.
  • LED curable adhesives: Adhesives that cure with monochromatic LED systems, with preferred wavelengths of 365nm or 405nm.

LED light sources are slowly making inroads into all markets for the specific purpose of curing (hardening) industrial light curable adhesives and sealants. Equipment manufacturers are now offering higher output intensities with greater selections of wavelength options in both the UV and visible light regions. The advantages of LED curing include cooler curing temperatures, instant on/off control without shutter mechanisms, and long operating life.

Typically described as monochromatic, LED curing is unique. Although it is identified by only a single output wavelength, the actual energy produced is a very concentrated cluster of wavelengths that includes the specified wavelength and those immediately adjacent to that wavelength. Unlike traditional broad spectrum mercury based systems, LED outputs are typically lower in intensity and narrow in spectral distribution.

A successful LED cure bonding process requires the pairing LED equipment with adhesives and sealants that are specifically formulated for lower intensity, isolated wavelength curing. Panacol-USA has been formulating low intensity light curable adhesives for over 15 years. This experience was instrumental in the development of our LED curable product line. When combined with the appropriate LED light source, Panacol-USA LED curable adhesives and sealants deliver all the efficiencies and benefits expected from LED curing.

Tpyical applications of acrylic uv adhesives include:

Electronics and PCB Assembly

Innovative adhesive solutions for PCB and FPCB assembly and electronics applications.

more information

Display Bonding

Panacol-USA’s liquid optically clear adhesives (LOCA) for display bonding are solvent-free, single component adhesives.

more information

Medical Device Adhesives

Panacol-USA formulates medical device adhesives that meet USP Class VI and ISO 10993 biocompatibility requirements.

more information

UV Masking Material

UV masking material can be easily applied for temporary coatings or protections.

more information

Liquid Gaskets & FIPGs

Liquid gaskets and sealants from Panacol-USA easy to dispense and cure with uv light witin seconds.

more information

Adhesives for Laminating Processes

Panacol-USA’s adhesives for laminating processes are ideally suited for laminating blister packs, foils or films.

more information

Plastic Bonding

Solvent-free Vitralit® adhesives from Panacol-USA are the perfect solution to bond plastics and dissimilar materials.

more information

Glass Bonding

Glass glue and glass adhesives from Panacol-USA cure under uv light within seconds and are used for decorative and industrial applications.

more information
