Adhesives for Laminating Processes

Panacol-USA offers light curable laminating adhesives that are ideally suited for laminating films, papers and foils used in product packaging. These applications typically require high T-peel strength, clarity, flexibility, and tear resistance. Panacol-USA adhesives produce strong bonds with PVC, polyethylene, metallized films, polyester, polyamide, and treated polypropylene. (Note: Surface treatment such as corona or plasma will typically enhance adhesive bond strength with all polymeric substrates.) Theses adhesives can be used to seal blister packs or point-of-purchase display packages (clamshells). PVC, PET, and RPET can be securely bonded together in a fast, efficient UV light curing process. Products packaged in clamshells sealed with Vitralit® adhesives gain the ultimate protection from theft, contamination, and environmental damage.

Vitralit® laminating adhesives are robust, moisture resistant, and remain extremely flexible after cure. They are single component and solvent-free. These adhesives cure with low intensity UV or Visible light, and are ideally suited for curing with cooler, monochromatic LED lights. Despite using lower intensity curing systems, cured adhesive surfaces are dry and tack-free.

Converters can dispense Panacol-USA’s adhesives manually or using roll coaters, gravure, and flexographic equipment. Several viscosity options are available in this adhesive selection to maximize processing efficiency. If required, Vitralit® laminating adhesives can be formulated with color, making it possible to eliminate additional lamination done solely for the purpose of adding color to the final product.

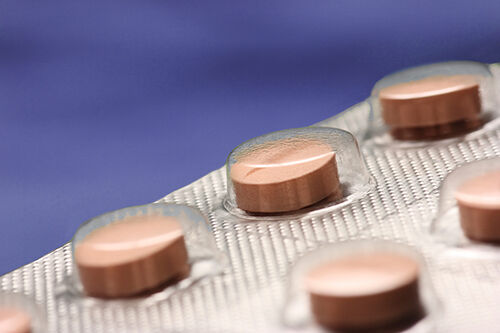

The foil of blister packs is laminated with Vitralit® uv adhesive

UV curing equipment:

UV system solutions with Panacol uv adhesives and innovative curing systems from Honle

View the flexible package laminating adhesives listed below for a possible candidate for your application. Please contact us for additional application assistance.

Laminating Adhesives: Application Viscosity [mPas] Curing* Properties
Vitralit® 80000 Adhesive for laminating processes TDS available upon request
Vitralit® 80015 Resilient laminating adhesive
250-500 UV
Vitralit® 80025 Adhesive for laminating processes TDS available upon request
Vitralit® 80037 Adhesive for laminating processes TDS available upon request
Vitralit® 80047 Adhesive for laminating processes 900-1,500 UV
Vitralit® 80300 Adhesive for laminating processes
Packaging applications
900-1,500 UV
Vitralit® 80480 Adhesive for laminating processes 100-200 UV
Vitralit® VBB-NC Adhesive for laminating processes
Glass bevel bonding
TDS available upon request

*UV = 320 - 390 nm          VIS = 405 nm

To download the technical datasheets (TDS) please click on the adhesive name.
