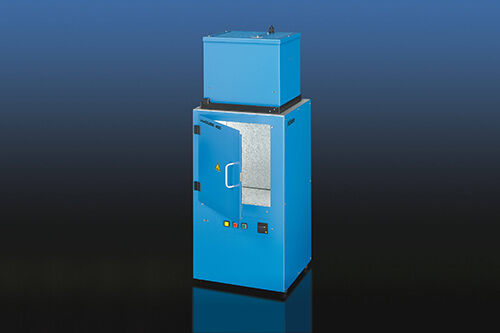

UVA Cube 400
UVA Cube 400 by Honle is a basic UV curing chamber for curing of UV reactive coatings, adhesives and compounds as well as for sun simulation and material aging.
It features a closed desktop unit especially designed for manufacture by hand and laboratory use. Different spectra are available through various lamp-/filter-combinations. The irradiated area is approx. 300 mm x 400 mm.
Applications:
- Curing of uv adhesives and plastics
- Curing of inks, varnishes and coatings
- Sunlight simulation and material age testing
- UV irradiation for chemical and biological applications
Basic UV curing chamber LED Cube 400 from Honle
Download:
UV curable adhesives:
UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle
Technical Data for UVA Cube 400
| Supply voltage: | 230 V / 50 Hz |
| Power input: | 400 W |
| Irradiation area: | max. 400 x 300 mm |
| Dimensions (LxWxD)*: | 834 x 466 x 402 mm |
* Dimensions of the unit without lamp equipment
