LED Line 500

Honle’s LEDLINE 500 is a UV-LED curing systems for larger areas. Its compact design makes it easy to transport and thus ideal for mobile use.

The LED Line 500 emits a homogeneous light footprint which ensures reliable curing results within seconds. An integrated timer allows the adjustment of irradiation times between 1 second and 19 hours which ensures total process control. Continous operation is also possible for in-line processing with conveyors.

For larger irradiation areas several LEDLINES are stackable up to any length.

The typical service life of a LED is more than 20,000 hours. LEDLINE 500 can be switched on and off as often as necessary as it does not require any warm-up or cooling phase.
LEDLINE 500 is available with emitted wavelengths of 365 nm or 405 nm. This allows a precise adaption to the respective application and UV reactive material.

LEDLINE 500 is ideal for curing UV reactive adhesives and sealants:

  • Curing of UV reactive adhesives when joining glass, plastics and metals
  • Curing of UV reactive compounds on electrical and electronic components
  • Manufacturing and repairing of plastic parts with UV curing polyester resins

LEDLINE 500 does not need an external power supply. An integrated driver allows the LED unit to be directly connected to the power source from the existing production process.

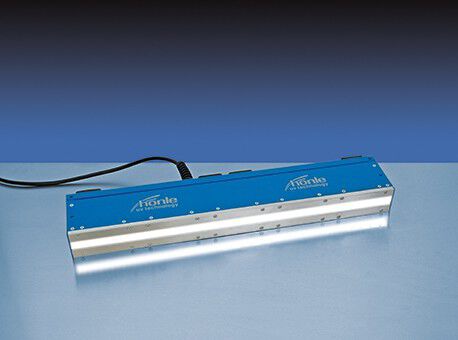

Highly intensive UV large area curing system LED Line 500 from Honle


Brochure LED Line 500

UV curable adhesives:

UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle

Technical Data for LED Line 500

Power supply: 110 - 230 V ± 10% / 50 - 60 Hz
Intensity*: 365 nm: 130 mW/cm² 405 nm: 300 mW/cm²
Dimension of output window: ca. 500 x 15 mm
Weight lamp unit: 2.8 kg
Power input: 120 Watt

* Measured with Hönle UV Meter and LED surface sensor, distance 20 mm
