LED Cube 100 IC

Honle’s  LED CUBE 100 IC is a compact UV curing irradiation chamber for use in the laboratory or for manual production. By employing different LED units the emission range is adjustable to various fields of application.

The LED assembly, as well as an electronic power control, guarantee high intensity and homogenous distribution of light. The recognition of LED-malfunction and a comprehensive monitoring function provide very high process stability.

The typical service life of a LED is more than 20,000 hours. The LED CUBE 100 IC can be switched on and off as often as necessary, as LEDs do not require a heating or cooling phase.

The emitted wavelengths are available in 365/385/395/405 nm +/- 10 nm. This allows to adapt the LED head to the existing application.

The LED CUBE 100 IC, controlled by the LED powerdrive, is suited for various applications:

  • Bonding, fixing or encapsulating components in the electronic, optical or medical sector
  • highly intensive UV irradiation in the biological, chemical and pharmaceutical sector


Compact dimensions

The irradiation chamber LED CUBE 100 IC with a usable irradiation area of approx. 180 x 180 x 180 mm (HxWxD) is especially suitable for smaller workpieces or workpiece carriers. The reflective inner surface and the optimized reflector geometrics provide for a homogenous irradiation and a high process reliability.

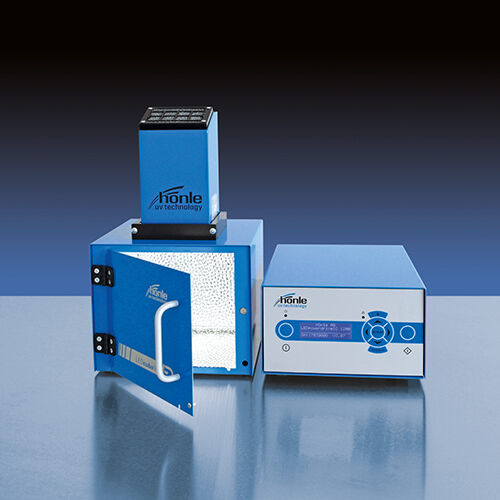

Compact UV curing chamber LED Cube 100 IC from Honle


Brochure LED Cube 100 IC

UV curable adhesives:

UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle

Technical Data for LED Cube 100 IC

LED service life: > 20.000 hours*
Adjustment range of timer (in sec.): 0.01 - 99.99   or   0.1 - 999.9   or   1 - 9999 or continuous operation

Wavelengths in nm:

Typical intensity in mW/cm²:

  • LED Spot 100 HP IC
  • LED Spot 100 IC

   365          385             395             405             460


1.200**     2.200**    2.200**     2.200**      3.000***

600**       1.100**      1.100**     1.100**      1.500***

Power supply LED powerdrive 115 – 230 V, 50 – 60 Hz
Max. input current 5.0 A

*     typical lifetime under specified operating conditions
**   measured with Hönle UV meter and LED surface sensor, distance 0 mm
*** measured with Hönle UV meter and VIS surface sensor, distance 0 mm
