UV Meter

The UV Meter from Honle is a uv measurement device which can be used for both broad spectrum UV and LED light systems. A wide range of interchangeable sensors accommodate the measurement of various equipment types and wavelengths. Measurements can be evaluated on a PC or with a PLC via USB connection.

System Features:

  • PTB-traceable results
  • Wide range of sensors
  • USB-port, also for battery charging

Advantages:

  • Handy
  • Easy to operate
  • Long battery life
  • UV-LED measuring head
© Honle

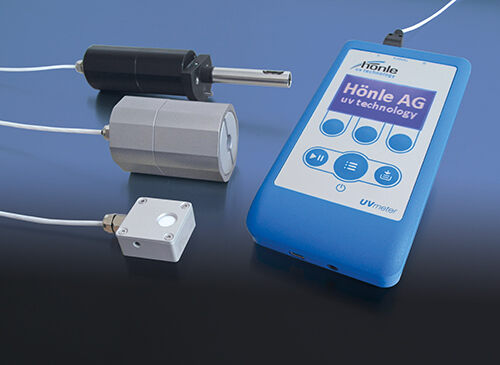

UV Meter from Honle

The hand-held Honle UV-Meter measures exact data that is traceable to the German standard PTB (Physikalisch-Technische Bundesanstalt). Different sensors cover wavelengths from 230 nm to 550 nm – UVC, UVB, UVA and VIS.

According to its wide range of interchangeable sensors the Honle UV-Meter is suitable for different manufacturing processes. Its compact surface sensors are only 14 mm high. For spot lamps various sensors are available.

A clearly arranged displays shows all modes of operation of this handy uv measuring unit, as well as the measured data (in mW/cm2, W/cm2 or W/m2). An intuitive operational concept by keypad, including short-cut keys for the most important functions, provide highest possible user comfort. Alternatively, measurements can be carried out by PLC control. The Honle UV-Meter offers automatic sensor recognition.

The batteries can be charged via USB and – thanks to lithium-ion technology – have a very long service life. Two-channel measuring for different wavelength ranges can be recorded at the same time.

Application Ranges:

  • for UV / UV-LED curing of inks and coatings
  • for UV / UV-LED curing of adhesives and potting compounds
  • for surface sterilisation via UVC radiation


Documented Measurement Data

With the measured data storage it is possible to record a test series of intensity and dose. In addition, the minimum, maximum and average intensity is retained during measuring activity. The integrated real-time clock in the Honle UV-Meter ensures precise timed sampling of measured results. The measurements can be evaluated on the PC or with a PLC via USB connection.

Advantages:

  • Cost Saving – a single UV meter for all applications
  • Measuring Accuracy – the UV-Meter is traceable to PTB standards
  • Process Reliability – constant control of UV-intensity ensures a consistent quality of UV curing and -drying
  • Certificated – reliable calibration with certificate


Types of Sensors:

Surface Sensors

Spectrum Maximum Intensity
UV-C (225 nm - 280 nm) 2 W/cm²
UV-B (265 nm - 320 nm) 2 W/cm²
UV-A (340 nm - 405 nm) 5 W/cm²
VIS (380 nm - 550 nm) 10 W/cm²
LED (265 nm - 485 nm) 30 W/cm²

Sensors with lower intensity range are also available.
Additional UV equipment, including custom curing systems, is available from Honle. Contact Application Engineering at Panacol-USA to discuss your UV requirements to obtain an equipment and process recommendation.

Light Guide Sensors

Spectrum Maximum Intensity
UV-C (225 nm - 280 nm) 2 W/cm²
UV-A (340 nm - 405 nm) 20 W/cm²
LED (265 nm - 485 nm) 30 W/cm²

Quartz Rod Sensors

Spectrum Maximum Intensity Lengths
UV-C (225 nm - 280 nm) 2 W/cm² 80, 146 & 260 nm
UV-A (340 nm - 405 nm) 5 W/cm² 80, 146 & 260 nm
