Bluepoint 4

Honle’s Bluepoint 4 is a high-performance, full spectrum, uv spot curing system for all adhesive applications that need high doses of UV intensity for curing. Programmable exposure sequences with different intensities allow engineers the ability to create custom curing processes that minimize cycle times.

Bluepoint 4 is a high performance UV spot lamp that can be used in manual work stations or integrated into automated assembly processes.

  • Extremely powerful spot curing system with infinitely variable UV intensity between 2.000 and 14.000 mW/cm² UVA
  • Long lamp service life (typically approx. 3.000 hours) combined with lower intensity reduction over time
  • Easy lamp replacement through a slide-out module at the front panel
  • User-friendly and menu-driven operation
  • Ability to program complete exposure sequences
  • Automatic calibration and power readjustment feature when used in combination with a Honle UV Meter
  • RS 232 and PLC interface, as well as additional relay contact with selectable function
  • Electronic ballast with automatic adjustment to any AC main supply
  • Interchangeable filters for different wavelength spectra
  • All parameter settings can be memorized on 6 storage locations and loaded when needed
  • Software update via internet

Bluepoint 4 uv spot curing lamps are suitable for a large range of applications:

  • Localized curing of protective coatings and encapsulants
  • Bonding or potting of components in the electronic, optical and medical industry
  • Fluorescent excitation for material testing and image processing
  • High-intensity UV irradiation for chemical, biological and pharmaceutical purposes

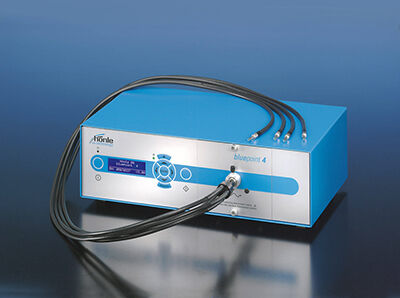

UV curing spot lamp with four light heads: Bluepoint 4 from Honle


Brochure Bluepoint 4

UV curable adhesives:

UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle

Technical Data for Honle Bluepoint 4

Max. UVA intensity*: 14.000 mW/cm²
Typical lamp life: > 3,000 hrs
Timer setting range: 0.1 – 999.9 sec
High-pressure mercury lamp: 150 W
Mains supply: 90 V – 264 V,  47 Hz – 63 Hz
Input current: max. 2.2 A
Power rating: 200 W
Dimensions: 155 x 450 x 310 mm
Weight: ca. 9.5 kg

* measured with a Hönle UV Meter and test light guide
