LED Power Pen 2.0

The Honle LED Power Pen 2.0 is a very versatile, hand held UV curing device for hardening uv curable adhesives and sealants. It can be operated manually at a work station or laboratory bench. Or, it can be integrated into an automated assembly line and controlled through an external PLC. Generating 10,000 mW/cm² of UV intensity at 365nm wavelength or 16,000 mW/cm² intensity at 405nm wavelength, the Honle LED Power Pen is capable of curing UV adhesives and potting materials in very short cycle times.

The Power Pen delivers efficiency through low power consumption and minimal heat generation. An internal power control and temperature switch prevent LED overheating. The Honle Power Pen offers 10 minute continuous operation without additional cooling. An optional external control provides output signal for process monitoring. Life expectancy for the LED is 20,000 hours or more.

The Power Pen 2.0 from Honle is suitable for many applications in automotive, medical device assembly, PCB packaging, optical alignment, and glass fabrication. It can also be used as a device for fluorescent excitation of genomic materials for testing and image processing. Whether for R&D or production, the Power Pen is an excellent UV curing device.

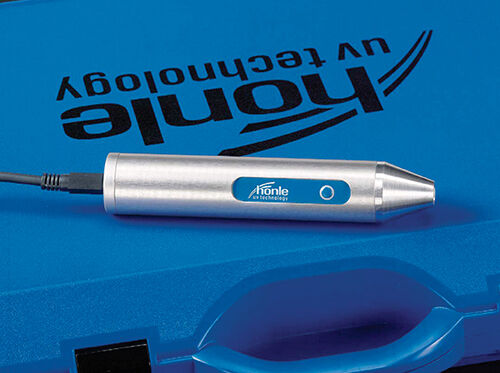

Hand held uv curing device LED Power Pen 2.0 from Honle


Brochure LED Power Pen 2.0

UV curable adhesives:

UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle

Technical Data for Honle LED Power Pen 2.0

Peak wavelengths: 365/405 nm
UVA Intensity in 12 mm distance*:

10.000 mW/cm² at 365 nm
16.000 mW/cm² at 405 nm

Electrical power input: ca. 5 W
Mains supply: From external net 100-240V AC
Dimensions (Ø x length): 26 mm x 140,5 mm
Weight: 140 g
Continuous operation without additional cooling: max. 10 minutes

*  measured with Hönle UV-Meter
