UV Curing Conveyor

Perfectly suited for LED systems, the Panacol-USA LC-2 Mini Conveyor provides a new option for curing adhesives in cleanrooms and tight work areas. Even the smallest workbench can accommodate this conveyor’s two foot length. Clean and quiet, the LC-2 Mini Conveyor facilitates continuous parts processing with maximum control over pre-set curing parameters.

Paired with the Hónle LED Spot 100 curing system, the LC-2 Mini Conveyor creates a 100 x 100mm light footprint over the belt. Protective shielding in the curing area blocks UV wavelengths and minimizes glare from visible light. Operators can be positioned in close proximity to the conveyor to perform loading and unloading operations. The LED Spot 100 offers wavelength options ranging from 365 to 460nm, and up to 1000 mW/cm2 intensity.

Options are available for wider curing footprints and slightly longer length for easier loading and unloading of components and assemblies.

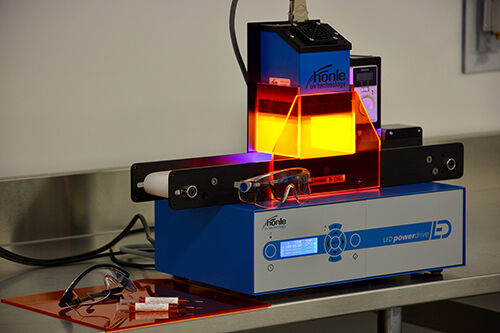

Mini UV curing conveyor LC-2 from Panacol-USA

UV curable adhesives:

UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle

Specifications for Curing Conveyor LC-2

Overall dimensions:

Length: 25 inches
Width: 14 inches, includes speed control
Height: 11 inches
Weight: 16 lbs (without LED head)

Frame construction:

Black anodized aluminium

Load capacity:

25 Ibs

Belt (standard):

4" width
2 ply (urethane top/polyester)
FDA conforming
other belt material options available

Linear speed:

Standard range: 0.8 - 13 feet/min. (digital display)
Tolerance: +/- 0.01 feet/min
Closed loop speed control
Other speeds and display units of measure available

Electrical: 115 VAC/60 Hz, 0.46 amps
