Minimally Invasive Device (MID) series of Medical Adhesives
Advances in extruded tubing options have created the need for assembly adhesives that produce higher strength bonds with lower standard deviation. A new series of medical device assembly adhesives is now available from Panacol-USA. These adhesives are formulated to address today’s challenges of minimally invasive device assembly.
MID adhesive features and benefits:
• Bond low surface energy catheter shafts from materials that include: Polyamide (Nylon 12), PEBAX®, VESTAMID®, GRILAMID®, and more...
• Form smooth guidewire transitions and secure torque devices with high strength bonds
• LED curable for higher process efficiency
• Stable bond strength through aging
• Consistent curing cycles for tighter process control
• Orange fluorescing for high visibility
View our biocompatible adhesives of the MID (minimally invasive device) series below. MID adhesives are packaged in 3 and 10 gram syringes. Samples are available for evaluation.
Please check with Panacol-USA Applications Engineering for new MID adhesive introductions that are not yet on our website!

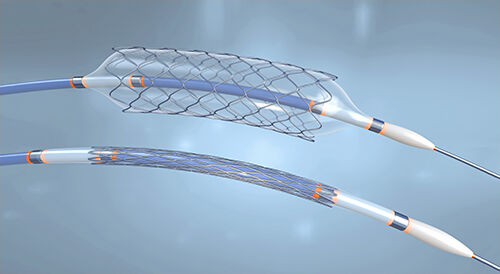

The new adhesives of the MID series for bonding minimally invasive devices are fluorescing orange
UV curing equipment:
UV system solutions with Panacol uv adhesives and innovative curing systems from Honle
Downloads:
Compare our MID adhesive performance with your current catheter assembly adhesives! It’s time to break away from the “old standards” and secure better reliability with MID adhesives from Panacol-USA!
| Adhesives | Viscosity [mPas] | Base | Curing* | Properties | Suitable Substrates |
|---|---|---|---|---|---|
| Vitralit® MID 002 | 3,000-5,000 | acrylate |
UV VIS |
clear tack-free highly resistant to moisture high elongation flexibility high peel strength resistant to thermal cycling fluorescent orange |
PEEK CoC PC |
| Vitralit® MID 003 | 1,000-3,000 | acrylate |
UV VIS |
clear tack-free highly resistant to moisture high elongation flexibility high peel stregth resistant to thermal cycling fluorescent orange |
Polyamide (Nylon 12) Pebax Polycarbonate Termoplastic elastomer (TPE) |
| Vitralit® MID 004 | 3,000-5,000 | acrylate |
UV VIS |
clear tack-free highly resistant to moisture high elongation flexibility high peel stregth resistant to thermal cycling fluorescent orange |
Polyimide (KAPTON®) Polycarbonate Polyethylene terephthalate (PET) Stainless steel Metal Glass |
| Vitralit® MID 004-HC | 3,000-5,000 | acrylate |
UV VIS thermal |
clear tack-free highly resistant to moisture high elongation flexibility high peel stregth resistant to thermal cycling fluorescent orange |
Polyimide (KAPTON®) Polyethylene terephthalate (PET) Metals Glass |
| Vitralit® MID 007 | 1,000-3,000 | acrylate |
UV VIS |
clear highly resistant to moisture fluorescent orange |
Polycarbonate Stainless steel PU PVC |
| Vitralit® MID 008 | 3,000-6,000 | acrylate |
UV VIS |
clear highly resistant to moisture fluorescent orange |
Stainless steel Nitinol Platinum |
| Vitralit® MID 013 | 1,000-3,000 | acrylate |
UV VIS |
clear highly resistant to moisture slightly thixotropic easily dispensable with minimum pressure fluorescent orange |
PEEK Polycarbonate Thermoplastic polyurthene elastomer (TPU, Pellethane) Polyetherimide (PEI, Ultem) |
| Vitralit® MID 014 | 1,000-3,000 | acrylate |
UV VIS |
clear highly resistant to moisture slightly thixotropic easily dispensable with minimum pressure fluorescent orange |
Polycarbonate PVC ABS |
| Vitralit® MID 016 | 1,000-3,000 | acrylate |
UV VIS |
clear highly resistant to moisture slightly thixotropic easily dispensable with minimum pressure fluorescent orange |
Polyamide Pebax® Polycarbonate PETG Metals |
*UV = 320 - 390 nm VIS = 405 nm
Registered Trademarks: PEBAX® (Arkema), VESTAMID® (Evonik Industries), Grilamid® (Ems-Patent-AG), KAPTON® (DuPont®)
To download the technical datasheets (TDS) please click on the adhesive name.
