Bluepoint LED eco
The UV curing spot lamp bluepoint LED eco from Honle provides high intensity, light curing energy for industrial assembly processes involving UV and visible light curing adhesives, coatings, and sealants. Up to four LED heads can be powered from a single bluepoint LED eco power control unit. The multiple LED heads can be programmed to operate simultaneously, in sequence, or independently to create up to four individual workstations. The Honle bluepoint LED eco is available with LED wavelengths of 365, 385, and 405nm. Any combination can be integrated with the compact power control unit.
Its incredibly small size (65 x 160 x 130 mm) makes the bluepoint LED eco ideally suited for integration into automated processing equipment. Bench space requirements in expensive cleanrooms can also minimized with the tiny footprint of the bluepoint LED eco. Programming, process monitoring, and software downloads can be accomplished using the unit’s manual control or from a remote PLC.
A power adjustment feature provides the ability to reduce output intensity from 100% to as low as 10% for maximum operating and adhesive curing efficiency. Process Flow Control permits full programming of the curing cycle including selecting alternating intensities and dwell times for efficient bonding and parts handling.
The bluepoint LED eco requires no warm-up time and provides instant on/off control. Actuation of the LEDs can range from 0.01-9999.0 seconds. Each LED head is equipped with a removable holding fixture for easy mounting. This mounting block also serves as a heatsink for the LED head. UV and Visible light adhesive bonding can be optimized with focusing lenses that adjust light footprint and intensity to create application-specific curing processes. Intensities as high as 20,000 mW/cm2 (405nm) can be achieved.
Optimized curing and high intensity output combine to produce the shortest adhesive curing cycles for your assembly process.
Typical applications for the bluepoint LED eco include the curing of UV adhesives, potting materials, and coatings associated with component assembly in the medical, micro-electronics, mobile device, and transportation industries.

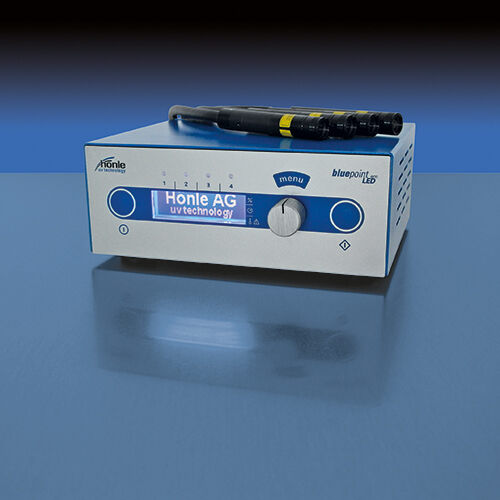

UV curing spot lamp with four LED heads: Bluepoint LED eco from Honle
Brochure Bluepoint LED eco (pdf)
Bluepoint LED eco information (pdf)
UV curable adhesives:
UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle
Technical Data for Honle Bluepoint LED eco
|LED service life:||> 20.000 hours*|
|Max. UVA intensity:||up to 20.000 mW/cm² **|
|Adjustment range of timer:||0.01 – 9999 sec or continuous operation|
|Wavelengths:||365 nm, 385 nm, 405 nm|
|Power supply:||20 V – 28 V DC or power pack|
|Max. input current:||3.5 A|
|Dimensions (H x W x D)||65 x 160 x 130 mm|
|Weight:||approx. 0.5 kg|
* typical lifetime under specified operating conditions
** depending on the LED head used, measured with Hönle UV meter with LED sensor
